Industrial 10/100/1000Mbps 802.3 Bt PoE Injector Hardened Gigabit High Power PoE Injector

Product Categories
Shenzhen Qiutian Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Industrial 10/100/1000Mbps 802.3 Bt PoE Injector Hardened Gigabit High Power PoE Injector

Certification : CE, FCC

Place of Origin : China

MOQ : 1 piece

Price : negotiation

Payment Terms : T/T

Supply Ability : 10000 pcs/month

Delivery Time : 3-4 working days

Packaging Details : package and carton

Forward Filter Rate : 1,488,000pps (1000Mbps)

Maximum Distance : Cat5 UTP up to 100m

Operating Temperature : -40°C to 80°C

MTBF : >200,000hrs

Input Power : 48~57VDC (Terminal Block)

Power Consumption : 100W Max

Contact Now

Industrial 10/100/1000Mbps 95W 802.3bt PoE Injector

Technical Parameters

Ethernet
Standards: IEEE802.3i 10 BASE-T, IEEE802.3u 100 BASE-TX, IEEE 802.3ab Gigabit Ethernet
IEEE802.3 x Flow Control
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 1000Base-T: Cat5 or above
Maximum Distance: Cat5 UTP up to 100m
Connector: 2x RJ45
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Power: 48~57VDC (Terminal Block)
Power Consumption: 100W Max.
PoE:
Standard: Data provide over pairs 1,2TX and 3,6RX
Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
Max. Power per Port: 95W Max per port (Alternative B Mode)
LED Indicators:
Power: Power Status
PoE: PoE Status


Product Overview

PoE Injector is a Hardened Gigabit High Power PoE Injector allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.

Product Features
◇ 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power
◇ Over Ethernet Output Port(Data + Power)
◇ Support 95W Power over Ethernet(PoE++) Power Sourcing Equipment
◇ Support 10/100/1000Base-TX
◇ Support DIN-Rail & Wall-mount installation.
◇ Extensive LED indicators for PoE diagnostics
◇ Environmentally Hardened -40°C to 80°C operating temperature

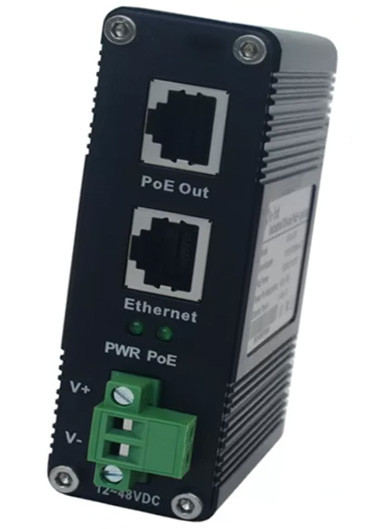

Product picture
Industrial 10/100/1000Mbps 802.3 Bt PoE Injector Hardened Gigabit High Power PoE Injector
Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

Industrial 10/100/1000Mbps 802.3 Bt PoE Injector Hardened Gigabit High Power PoE Injector
