DIN-Rail Industrial 802.3bt Gigabit PoE++ Splitter Output Voltage 24VDC
Technical Parameters
| Hardware Specifications |
| Interface | PoE Input Port |
| 1 10/100/1000 BASE-T RJ45 |
| Data Output Port |
| 1 10/100/1000 BASE-T RJ45 |
| DC Out Plug Connector |
| 1 removable 2-pin terminal block |
| DC output |
| 24VDC output |
| LED Indicators | PWR (Green) |
| PoE (Green) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (L x W x H) | 95 x 70 x 30 mm |
| Weight | 260g |
| Installation | DIN-Rail mountable |
| ESD Protection | 6KV |
| EFT Protection | 6KV |
| Enclosure | IP40-rated Aluminum Housing |
| Power Requirements | 4-pair 802.3at PoE+ and 802.3bt PoE++ |
| PoE DC 48 ~ 56V |
| Power Consumption | System on with PoE input |
| <5 watts |
| Full loading with maximum |
| 24VDC, 2.08A output |
| 50 watts |
| Power Output | 802.3 bt PoE++ input |
| 24VDC, 2.08A (max.) |
| Network Cable | 802.3 bt PoE++ input |
| (60W+) |
| 4-pair UTP Cat. 5e, 6, up to 100m (328ft) |
| 802.3at PoE+ input |
| (30W) |
| 2-pair UTP Cat. 5, 5e, 6, up to 100m (328ft) |
| Power over Ethernet |
| PoE Standard | IEEE 802.3 bt PoE++ |
| 4-pair 802.3at PoE+ |
| Power Output | 24VDC |
| PoE Power Supply Type | End-span + Mid-span |
| End-span |
| Mid-span |
| Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) |
| Standards Conformance |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
| IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3bt 4-pair Power over Ethernet Type 4 |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment |
| Operating Temperature | -40~ 80 degrees C |
| Storage Temperature | -40~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
Product Overview
DIN-Rail Industrial 802.3bt Gigabit PoE++ Splitter is an Industrial High Power PoE++ Splitter that can split the 48~56V DC over the existing Ethernet cable into the 24VDC power output. It supports passive 10/100/1000Mbps Ethernet connection ability and complies with IEEE 802.3bt High Power over Ethernet standard that supports up to 50-watt output power to powered device. To fulfill the growing industrial applications, the UF-IPSBT-24V is designed to work under the operating temperature range from -40 to 80 degrees C (-40 to 176 degrees F). The UF-IPSBT-24V is an ideal solution to transferring power to traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.
Product Features
► Splits an IEEE 802.3bt PoE++ connection into power and Gigabit Ethernet for non-PoE devices
► One DC output with power up to 24V / 2.08A / 50W via 2-pin terminal block
► One RJ45 input port up to 90W from an IEEE 802.3bt compliant PoE injector or PoE switch (PSE)
► One RJ45 output port with 10/100/1000 data rates
► IP40-rated metal housing to withstand harsh industrial conditions
► Suitable for extreme operating temperatures of -40 to 80ºC (-40 to 176ºF)
► Option for DIN-rail installation
► Distance support: up to 100 m (328 ft.)
► Short-circuit, overload and high-voltage protection
► ESD protection up to 8 kV (air) and 6 kV (contact)
► Port surge protection up to 2 kV

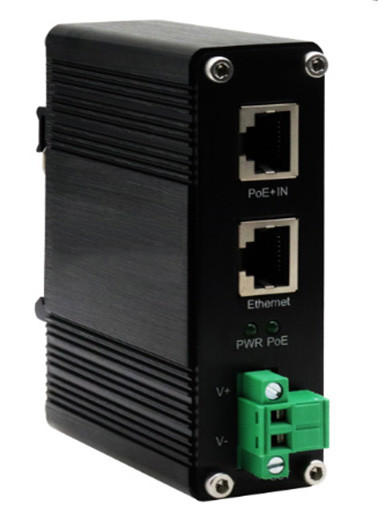

Product picture
